Unique Mixproof Tank Outlet

Same basic advantages as the unique mixproof valves but specially designed for mounting directly on the tank wall at the inlets and outlets. For tank inlet and outlet applications, the Unique mixproof tank outlet (TO) valve offers full drainability and provides cleanability all the way up to the tank without any risk of cross-contamination.

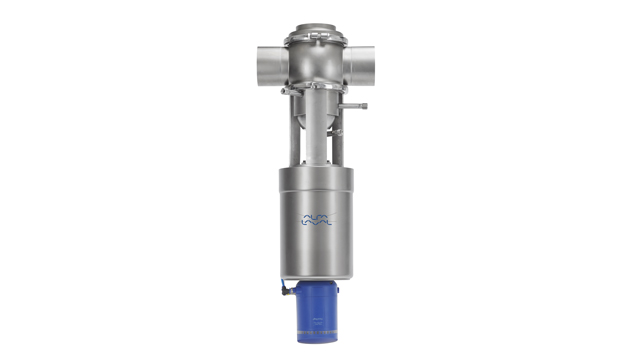

Unique Mixproof Tank Outlet w V70 640x360

Cost effective tank outlet mixproof valve

Alfa Laval Unique Mixproof TO valves feature two independent plugs. It is the choice for hygienic installations enabling safe filling or emptying of tanks.

Exceptional spillage-free operation

A state-of-the-art double-seat design provides long-lasting, spillage-free operation thus minimizing the risk of product contamination. The use of double lip seals provides added protection to ensure safe and hygienic operation.

Easy valve to maintain and clean

Unique mixproof valves feature a top-loaded design, making maintenance fast and easy. It also features no adjustable components, a maintenance-friendly actuator and built-in leakage detection on all seals. Unique mixproof valves meet most hygienic standards and can be supplied with the optional SpiralClean cleaning system.

Click on the playlist to see all 4 animations!



You get the full benefit of using Unique mixproof valves by combining them with Alfa Laval ThinkTop and ThinkTop Basic valve sensing and control units.

Valve clusters - customized flow solutions

We are specialists in providing pre-built valve clusters customized to meet specific, individual requirements.
Our expertise helps ensure you the most efficient flow management, using as few components as possible and dealing effectively with key issues that include thermal cycling, cleanability, drainability and flow control.
Alfa Laval valve clusters can be supplied pre-assembled and pre-tested as well as fully wired and with all the necessary pneumatic tubing, junction boxes and control panels pre-connected.
This means you can bring even complex installations online as quickly as possible, saving time and avoiding lost revenue associated with on-site troubleshooting and downtime.

For more information, please refer to Documentation and to the Selection Guide.

For cost-effective alternatives to the Unique mixproof valve range, Alfa Laval also offers standard SMP mixproof valves.

Product benefits

  • Cost effective
  • Safe and hygienic operation
  • Easy to maintain and clean

Catálogo de produtos

Última versão on-line de 'Close at hand'

Encontre um produto da Alfa Laval

Como funciona

Construção

O conceito da válvula Unique Mixproof é baseado em uma série de componentes de base, incluindo o corpo da válvula, plugue da válvula, atuador, opções de limpeza e acessórios que suportam uma ampla gama de aplicações. Usando esses componentes, você pode criar uma válvula Unique Mixproof para atender aos requisitos exatos do processo.

Para facilitar a manutenção, a válvula Unique Mixproof também possui orifícios de detecção de vazamento que fornecem notificação antecipada de desgaste ou danos nos O-rings. Os operadores podem inspecionar visualmente a válvula a qualquer momento sem precisar desmontá-la.

Princípio de funcionamento

A válvula Alfa Laval Unique Mixproof é normalmente fechada (NC) e controlada diretamente de um local remoto por meio de ar comprimido.

Para separar os dois líquidos, a válvula possui duas vedações de plugue independentes. O espaço entre as duas vedações forma uma câmara de vazamento atmosférico. No caso raro de vazamento acidental do produto, o produto flui para a câmara de vazamento e é descarregado através da saída de vazamento.

Quando a válvula estiver aberta, a câmara de vazamento estará fechada. Dessa forma, o produto pode circular de uma linha para a outra sem derramamentos. A válvula pode ser facilmente limpa e protegida contra efeitos de golpe de aríete de acordo com os requisitos específicos do processo e a configuração da válvula. (Não há derramamento de produto durante a operação da válvula.)

State-of-the-art horizontal mixproof valve

Based on the well proven and exceptionally versatile principle of the Unique Mixproof valves, this horizontal mixproof tank valve features many of the same components, such as the actuator, yoke and seals, and therefore the same spare parts. This provides the benefits of easy serviceability and low total cost of ownership.

Alfa Laval Unique Mixproof Horizontal Tank Valve, can be fitted with any level of sensing and control. It is as standard supplied with seat lift, which enables handling of two different products at the same time, or safe handling of one product while seat-lift cleaning operations are being conducted in the other portion of the valve – all without any risk of cross-contamination. The double tangential design of the valve body ensures full drainability, especially when the valve is mounted at the bottom of a flat-bottomed tank.

Vídeos de serviço e manutenção 360°

Válvulas Alfa Laval Unique Mixproof – substituir produto – vedações em contato com o produto

Válvulas Alfa Laval Unique Mixproof - substituir vedação radial

Válvulas Unique Mixproof da Alfa Laval - substituir vedação axial
