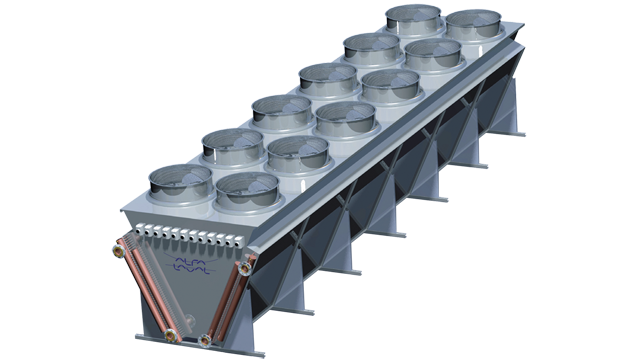

Fincoil Solar Max SXG
Fincoil Solar Max heavy duty dry coolers are often used for cooling down condenser water in air conditioning and refrigeration installations. In the processing industry, dry coolers are suitable for closed circuit cooling of various process liquids. The Fincoil Solar Max range is especially suitable when high capacities relative to available space, low energy consumption and/or low sound pressures are required.
Standard configuration
- Coil
Coil manufactured from copper tubes ø 12.7 mm and corrugated Alu-fins, tube pitch 35 x 30.31 mm. Standard fin spacing is 2.3 mm. - Casing
Casing and framework of corrosion resistant, hot dip galvanised sheet steel. - Fan motors
2 to 12 axial fans available in a range of different fan speed executions, diameters 914 or 1240 mm. Enclosed design fan motors, protection class IP-54, class F insulation. Motors are wired to the fans’ safety switches (IP65) at the end of the unit. All fans have corrosion resistant fan blades and fan guards.
Options
For a full overview of all available options and additional technical specifications please refer to the product leaflet.
Specifications
- All liquids that do not corrode copper
- Capacities: 146 up to 1638 kW
(water, EN1048)
Product selection
These air heat exchanger products can be configured and selected using the FincoilSelect selection tool.
> FincoilSelect
Cold Room Calculator
Mobile app for iOS & Android to calculate the expected heat load for your cold room.
Cold Room Calculator
Additional product information
Find manuals, electrical drawings, CAD drawings, High Resolution pictures and certificates.
Como funciona
Alfa Laval finned coil air heat exchangers have been designed to achieve an optimized exchange of thermal energy between air and a refrigerant or fluid. The ‘heart’ of our air heat exchangers is the finned coil, built up from a circuit of interconnected tube serpentines and fins to increase the heat exchanging surface. Thanks to the combination of key design variables (coil materials, coil geometry, casing design, fan type), air units are very versatile heat exchangers with a great variety of applications in many industries. Alfa Laval supplies finned coil air heat exchanger products for a wide variety of applications.
Air-cooled liquid coolers (radiators/dry coolers)
Air heat exchangers may be used to cool various process liquids. For this application hot process liquid flows through the tubes. This liquid is cooled by the relatively cold ambient air that is forced through the coil.
Air heat exchangers for process liquid cooling are referred to as 'radiators'. Air-cooled liquid coolers for HVAC applications and total energy systems are referred to as 'dry coolers'.
