Micro

O Alfa Laval Micro é um recuperador de calor para gases de exaustão, projetado especialmente para a recuperação de calor residual de pequenas turbinas a gás e motores em processos limpos.

Uso econômico do calor residual

  • Menor área utilizada e peso
  • Possibilidade de limpeza durante a operação do motor, turbina ou processo
  • A saída pode ser ajustada de acordo com a necessidade
  • Maior tempo entre a limpeza principal, por exemplo, via modo de operação a seco
  • Baixa inércia

Em qualquer operação, quase sempre há espaço para reduzir o consumo de energia assim como os custos . A chave está em recuperar a energia perdida, como calor dos gases de escape. Como pioneira na recuperação de calor, a Alfa Laval possui a tecnologia e a experiência necessárias para ajudá-lo a aumentar ainda mais sua eficiência energética.

.

Fale com um especialista

Esta informação é arquivada e processada de acordo com a nossa Política de Privacidade.

.

Myanmar 640x360.jpg

Applications

The Aalborg Micro can operate with a diversity of media, including water, steam, triethylene glycol (TEG) and thermal fluid oil (TFO). To date, Alfa Laval Micro heat exchangers have been used in different applications across a wide range of industries.

.

Power generation 640x360.jpg

Design

The Aalborg Micro is build in a durable design featuring a heating surface consisting of a number of coaxial tubes arranged in a vertical or horizontal cylindrical shell plate. This, ensures a long-term, trouble-free performance and offers capacities ranging from approximately 250-5000 kW.

The heating surface of the Aalborg Micro has been developed for easy maintenance. Cleaning can be performed either with a pyrolysis process when operating in dry-run mode or using optional soot blower rings with compressed air, steam or water.

.

Technical data

  • Capacity: 250 – 5000 kW

Exhaust gas side:

  • Maximum inlet temperature : 600 °C (dry-run 530 °C)
  • Minimum outlet temperature: Dependent on engine fuel and exhaust gas composition
  • Pressure loss: According to customer requirement
.

Geometry

  • Weight: (incl. insulation) 400 kg to 3900 kg
  • Diameter (incl. insulation): 950 to 1870 mm
  • Height (incl. insulation): 1700 to 2800 mm
  • Media inlet/outlet header: DN100
  • Exhaust inlet/outlet header: DN450 to DN1000
  • Insulation: 150 mm

Como funciona

.

Alfa Laval Micro - how it works illustration.png

Media sources

  • Hot water

    District heating, HVAC, process applications, ORC (electricity) etc.
  • TEG

    District heating, HVAC, process application, ORC (electricity) etc.
  • Thermal oil

    Heating
  • Steam

    Process applications, steam turbines (electricity), service steam
.

Selecionamos as seguintes referências:

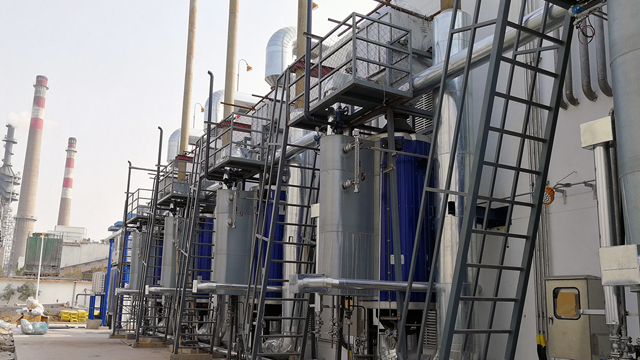

Power generation in China

70 x Alfa Laval Micro 319 after gas engines to produce hot water.

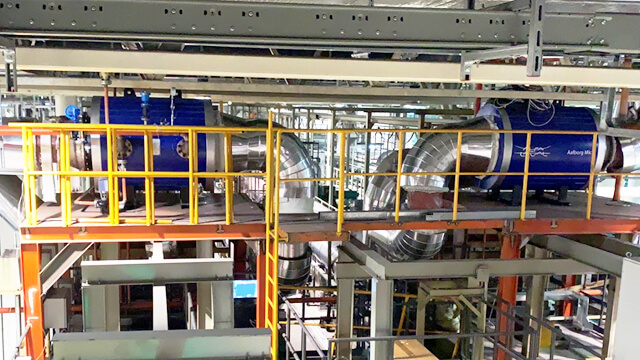

Process flue gas in China

3 x Alfa Laval Micro 406 and 2 x Alfa Laval Micro 410 used to recover heat from aluminium melting furnace to generate hot water.

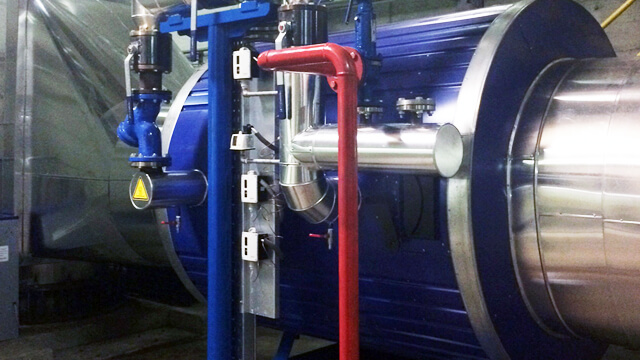

Industrial process in Italy

Alfa Laval Micro 814 for hot water application after gas engine.

Hotel industry in Mexico

Alfa Laval Micro 210 for hot water application after gas engine.

District heating in Denmark

Alfa Laval Micro 714 for hot water application after multi fuel engines.

Power generation in China

11 x Alfa Laval Micro 422 with cyclone for steam production.
