Aalborg OM

Aalborg OM is a high performance medium capacity oil-fired auxiliary boiler which is intended for steam or hot water production.

marine boilers

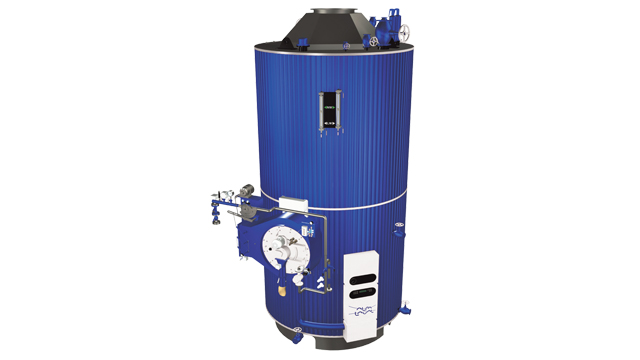

Aalborg OM (formerly MISSION™ OM) is a high performance medium capacity oil-fired auxiliary boiler.

It is intended for steam or hot water production, the oil and gas-fired Aalborg OM is supplied as a vertical, pre-assembled boiler unit with both smoke tubes and pin tubes.

Features and benefits of the Aalborg OM product

  • Vertical cylindrical boiler made of mild steel
  • Integrated control panel
  • Pin tube elements
  • Top-mounted fittings
  • Ready to install
  • Designed for operation with a monobloc type pressure jet burner, rotary cup burner or steam atomizing burner.

Como funciona

Alfa Laval Aalborg steam atomizing burner-
Aalborg KBSA

The Aalborg KBSA steam atomising burner is designed for use on our side-fired boilers and can be delivered premounted. The use of oil flowmeter and modulation of the atomizing steam pressure ensures a stable combustion at all loads, also in the lower end. All burner mountings are arranged to ensure easy installation and maintenance.

  • Capacity range: 1.7 – 46.9 MW



Its furnace consists of membrane walls with a number of large tubes in between, and sufficient circulation is ensured by downcomers placed within these tubes.

The optimally designed pin-tube elements, which ensure high performance, are also used to support the top plates of the furnace and boiler.

Design data

  • Thermal output: up to 31.5 MW
  • Steam capacity: 8.0 - 45.0 t/h
  • Design pressure: up to 11 or 18 bar(g)

Ship types

  • Cruise vessel
  • VLCC tanker
  • Suezmax tanker
  • Aframax tanker
  • Panamax tanker
  • FPS unit
